Some reasons for choosing Sureline products

Sureline protects and withstands overvoltages

In order to protect correctly, the protection device must withstand overvoltages,
the Sureline units (230V) withstand overvoltages of 450V permanent and 1000V Pk.

Maximum precision (V, I) ± 0.1%, 0.2% y 0.5%

Thanks to its own technology and to its use of top quality calibrators, the Sureline units guarantee precisions of up to 5 decimal places.

Very high-speed cut-off (2ms)

In order guarantee maximum protection and an extremely high level of safety, the cut-off time is very much reduced.
For added safety, the Sureline units incorporate a double cut-off device.

Sureline measures and protects ALL

Safeline does not confine itself to offering conventional metering and protections.
It offers hundreds of measurement parameters and 30 simultaneous protections.

At the forefront in performance

In order to take full advantage of the Sureline units, these can be connected to the Internet. To this end,
the user has at his disposal DWP (professional software for PC, Modbus TCP / IP communications and the WebServer.

Analysing consumption

Domotics

Alerts via e-mail

MODBUS platform

Thanks to the open MODBUS platform integrated in all the UNIVERSAL+ units, the user can develop his own customised application.

Design, quality, miniaturisation and finishing

Only Safeline incorporates its own exceptional 100,000-operation motor-drive in a unit of only 4 modules.
It uses high-quality components and gold-plated connectors to ensure maximum service life and high reliability.
Minimal energy consumption (1 - 1,5W) and low working temperature.

Support for PoE (Power over Ethernet)

The units of the UNIVERSAL+ range can be powered by an Ethernet cable with no need whatsoever for mains supply.

3-year guarantee

Apart from the 3-year full warranty. Safeline provides a rapid, economical and efficient technical service.

Comparative study

Select a family and compare the different models.

Specifications

LED-backlit display.

Integrated General Electric MCB from 6 to 63A, 2 and 4-pole.

Texas Instruments micro-computer. Highly stable unit due to built-in triple watchdog.

Built-in motor-drive (100,000 operations).

Dimensions 2-pole:
128 mm (7 modules) x 81 mm, 35mm DIN rail.m.

Dimensions 4-pole:
163 mm (9 modules) x 81 mm, 35mm DIN rail.

RJ-45 Ethernet connector.



LED-backlit display.

External ABB / GE MCB solenoid from 80 to 250A, 4-pole.

Texas Instruments micro-computer. Highly stable unit due to built-in triple watchdog.

External reclosure motor-drive.

Dimensions 4-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

RJ-45 Ethernet connector.



LED-backlit display.

External relay / reclosure contactor from 25 to 1250A, 2 and 4-pole.

Texas Instruments micro-computer. Highly stable unit due to built-in triple watchdog.

External relay / reclosure contactor.

Dimensions 2-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

Dimensions 4-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

RJ-45 Ethernet connector.



LED-backlit display.

Texas Instruments micro-computer. Highly stable unit due to built-in triple watchdog.

Dimensions 2-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

Dimensions 4-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

RJ-45 Ethernet connector



Working LED with reset button.

Texas Instruments micro-computer. Highly stable unit due to built-in double watchdog.

Dimensions 2-pole:
18 mm (1 module) x 67 mm, 35mm DIN rail.

Dimensions 4-pole:
36 mm (2 modules) x 67 mm, 35mm DIN rail.

RJ-45 Ethernet connector.



Working LED with reset button.

Texas Instruments micro-computer. Highly stable unit due to built-in double watchdog.

Dimensions 2-pole:
18 mm (1 module) x 67 mm, 35mm DIN rail.

Dimensions 4-pole:
36 mm (2 modules) x 67 mm, 35mm DIN rail.

RJ-45 Ethernet connector.

Features

30 simultaneous protections with very high-speed cut-off (2ms).

Mains quality analysis.

Alarms programmable in value and delay (intelligent and sequential).

Management, sizing and energy monitoring.

Maximum and minimum measurement logs and individual alarm counters.

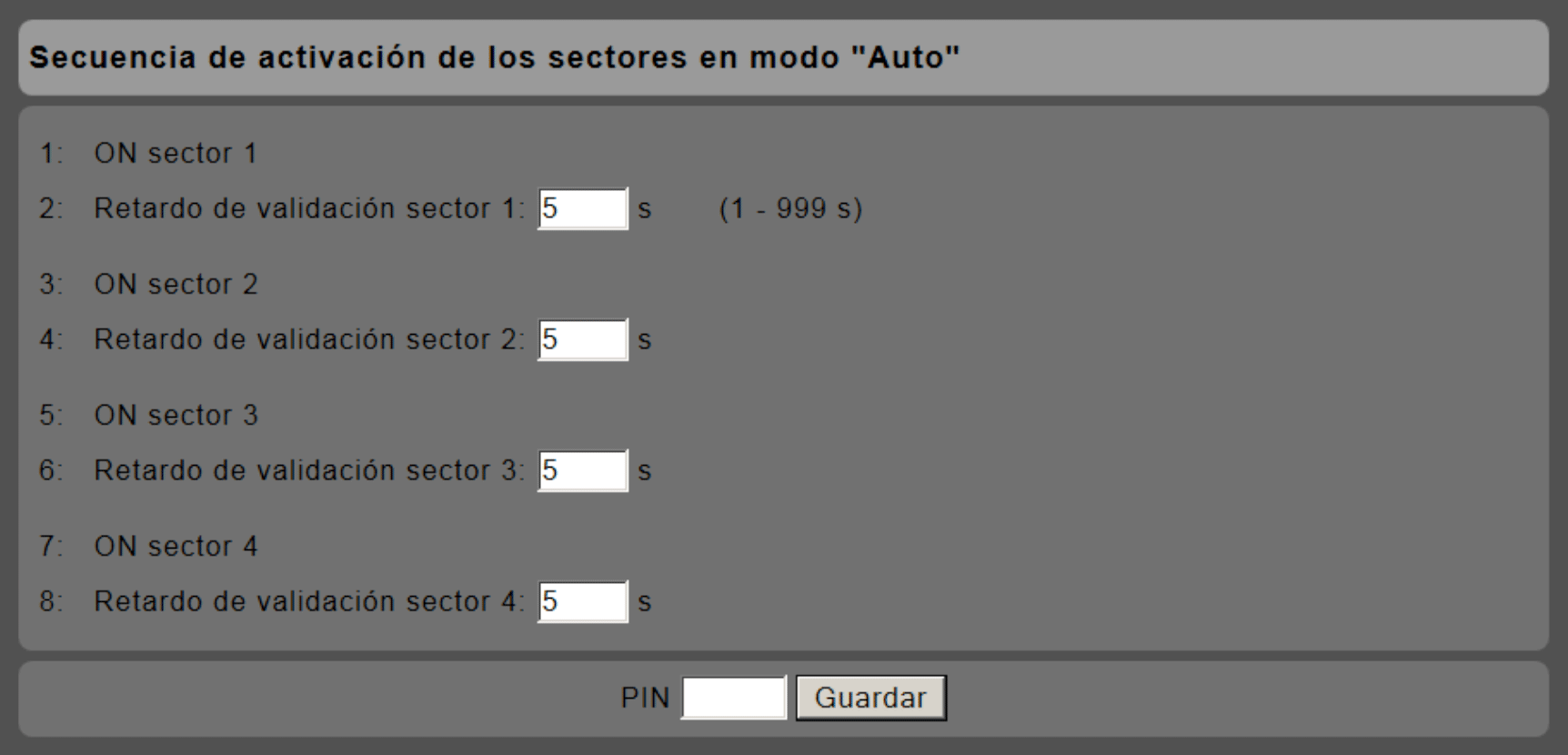

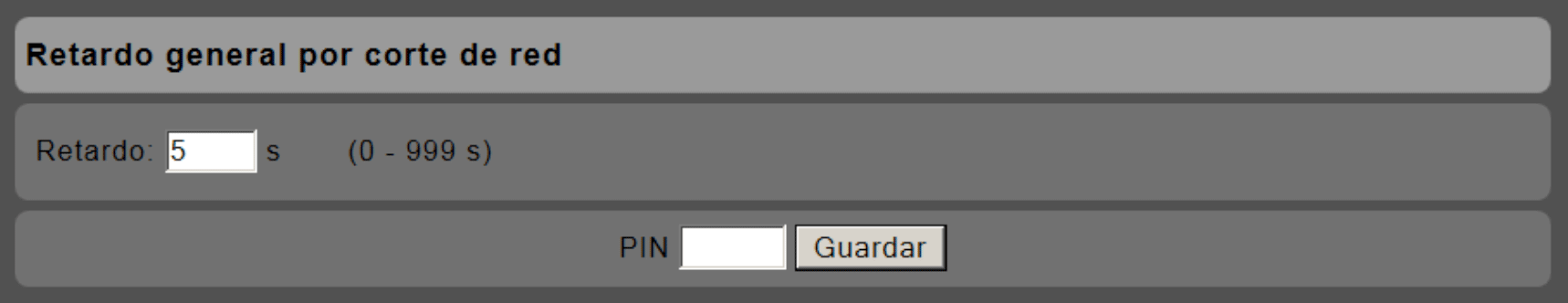

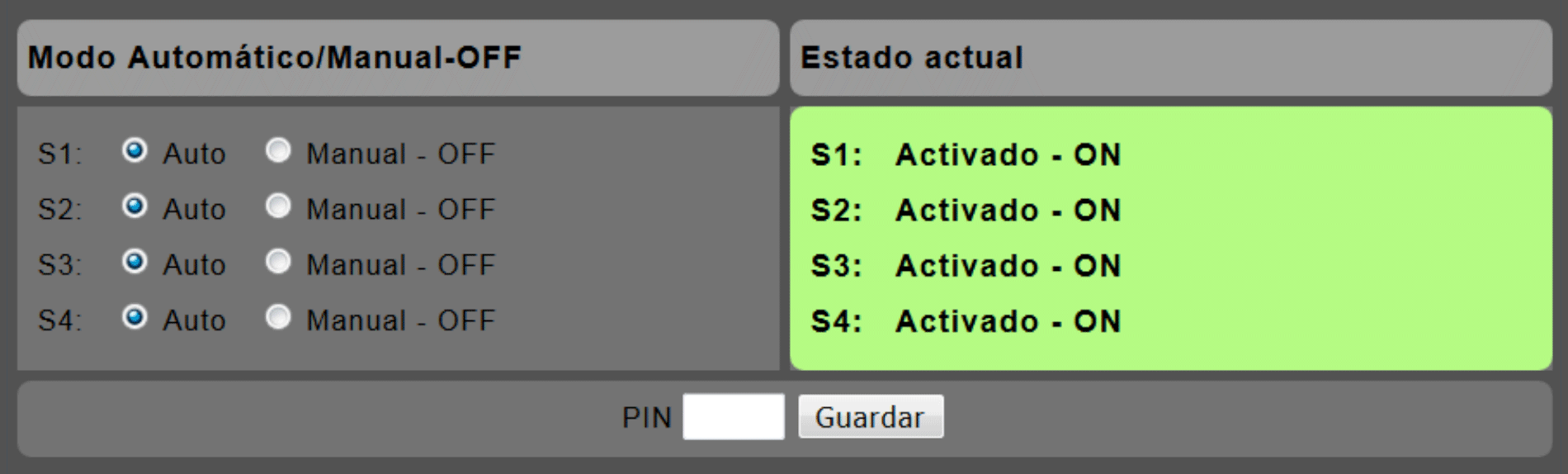

WebServer: display with continuous refreshment, programming and remote control via the Internet.
Further information

Control for up to 10 output and 10 input relays (domotics) plus 2 remote relays via TCP / IP (multi-interaction).

DWP, professional desktop software for PC, with database, graphical data analysis, oscilloscope event-logger in waveform with pre-trigger and autoscale, 7-channel oscilloscope, 63-harmonics spectrum, programmable control of relays with alarms, automatic alerts via e-mail.
Further information

Historical, chronological log of alarms and conditions.

Modbus and HTTP TCP / IP communication protocols for user application (customised software).



30 simultaneous protections with high-speed cut-off (5ms).

Mains quality analysis.

Alarms programmable in value and delay (intelligent and sequential).

Management, sizing and energy monitoring.

Maximum and minimum measurement logs and individual alarm counters.

WebServer: display with continuous refreshment, programming and remote control via the Internet.
Further information

Control for up to 10 output and 10 input relays (domotics) plus 2 remote relays via TCP / IP (multi-interaction).

DWP, professional desktop software for PC, with database, graphical data analysis, oscilloscope event-logger in waveform with pre-trigger and autoscale, 7-channel oscilloscope, 63-harmonics spectrum, programmable control of relays with alarms, automatic alerts via e-mail.
Further information

Historical, chronological log of alarms and conditions.

Modbus and HTTP TCP / IP communication protocols for user application (customised software).



30 simultaneous protections with medium-speed cut-off (10ms)

Mains quality analysis.

Alarms programmable in value and delay (intelligent and sequential).

Management, sizing and energy monitoring.

Maximum and minimum measurement logs and individual alarm counters.

WebServer: display with continuous refreshment, programming and remote control via the Internet.
Further information

Control for up to 10 output and 10 input relays (domotics) plus 2 remote relays via TCP / IP (multi-interaction).

DWP, professional desktop software for PC, with database, graphical data analysis, oscilloscope event-logger in waveform with pre-trigger and autoscale, 7-channel oscilloscope, 63-harmonics spectrum, programmable control of relays with alarms, automatic alerts via e-mail.
Further information

Historical, chronological log of alarms and conditions.

Modbus and HTTP TCP / IP communication protocols for user application (customised software).



Mains quality analysis.

Alarms programmable in value and delay.

Management, sizing and energy monitoring.

Maximum and minimum measurement logs and individual alarm counters.

WebServer: display with continuous refreshment, programming and remote control via the Internet.
Further information

Control for up to 10 output and 10 input relays (domotics) plus 2 remote relays via TCP / IP (multi-interaction).

DWP, professional desktop software for PC, with database, graphical data analysis, oscilloscope event-logger in waveform with pre-trigger and autoscale, 7-channel oscilloscope, 63-harmonics spectrum, programmable control of relays with alarms, automatic alerts via e-mail.
Further information

Historical, chronological log of alarms and conditions.

Modbus and HTTP TCP / IP communication protocols for user application (customised software).



Mains quality analysis.

Alarms programmable in value and delay.

Management, sizing and energy monitoring.

Maximum and minimum measurement logs and individual alarm counters.

WebServer: display with continuous refreshment, programming and remote control via the Internet.
Further information

Control for up to 10 output and 10 input relays (domotics) plus 2 remote relays via TCP / IP (multi-interaction).

DWP, professional desktop software for PC, with database, graphical data analysis, oscilloscope event-logger in waveform with pre-trigger and autoscale, 7-channel oscilloscope, 63-harmonics spectrum, programmable control of relays with alarms, automatic alerts via e-mail.
Further information

Historical, chronological log of alarms and conditions.

Modbus and HTTP TCP / IP communication protocols for user application (customised software).



Management, sizing and energy monitoring.

Maximum and minimum measurement logs

WebServer: display with continuous refreshment, programming and remote control via the Internet.
Further information

DWP, professional desktop software for PC, with database, graphical data analysis and automatic alerts via e-mail.
Further information

Modbus and HTTP TCP / IP communication protocols for user application (customised software).

Specifications

LED-backlit display.

Integrated General Electric MCB from 6 to 63A, 2 and 4-pole.

Texas Instruments micro-computer. Highly stable unit due to built-in triple watchdog.

Built-in motor-drive (100,000 operations)

Dimensions 2-pole:
128 mm (7 modules) x 81 mm, 35mm DIN rail.

Dimensions 4-pole:
163 mm (9 modules) x 81 mm, 35mm DIN rail

RJ-45 Ethernet connector.



LED-backlit display.

External ABB / GE MCB solenoid from 80 to 250A, 4-pole.

Texas Instruments micro-computer. Highly stable unit due to built-in triple watchdog.

External reclosure motor-drive.

Dimensions 4-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

RJ-45 Ethernet connector.



LED-backlit display.

External relay / reclosure contactor from 25 to 1250A, 2 and 4-pole

Texas Instruments micro-computer. Highly stable unit due to built-in triple watchdog.

External relay / reclosure contactor.

Dimensions 2-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

Dimensions 4-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

RJ-45 Ethernet connector.



LED-backlit display.

Texas Instruments micro-computer. Highly stable unit due to built-in double watchdog.

Dimensions 2-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

Dimensions 4-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

RJ-45 Ethernet connector.



LED-backlit display.

Texas Instruments micro-computer. Highly stable unit due to built-in double watchdog.

Dimensions 2-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

Dimensions 4-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

RJ-45 Ethernet connector.



LED-backlit display.

Texas Instruments micro-computer. Highly stable unit due to built-in double watchdog.

Dimensions 2-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

Dimensions 4-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

RJ-45 Ethernet connector.

Features

28 simultaneous protections with very high-speed cut-off (2ms).

Mains quality analysis.

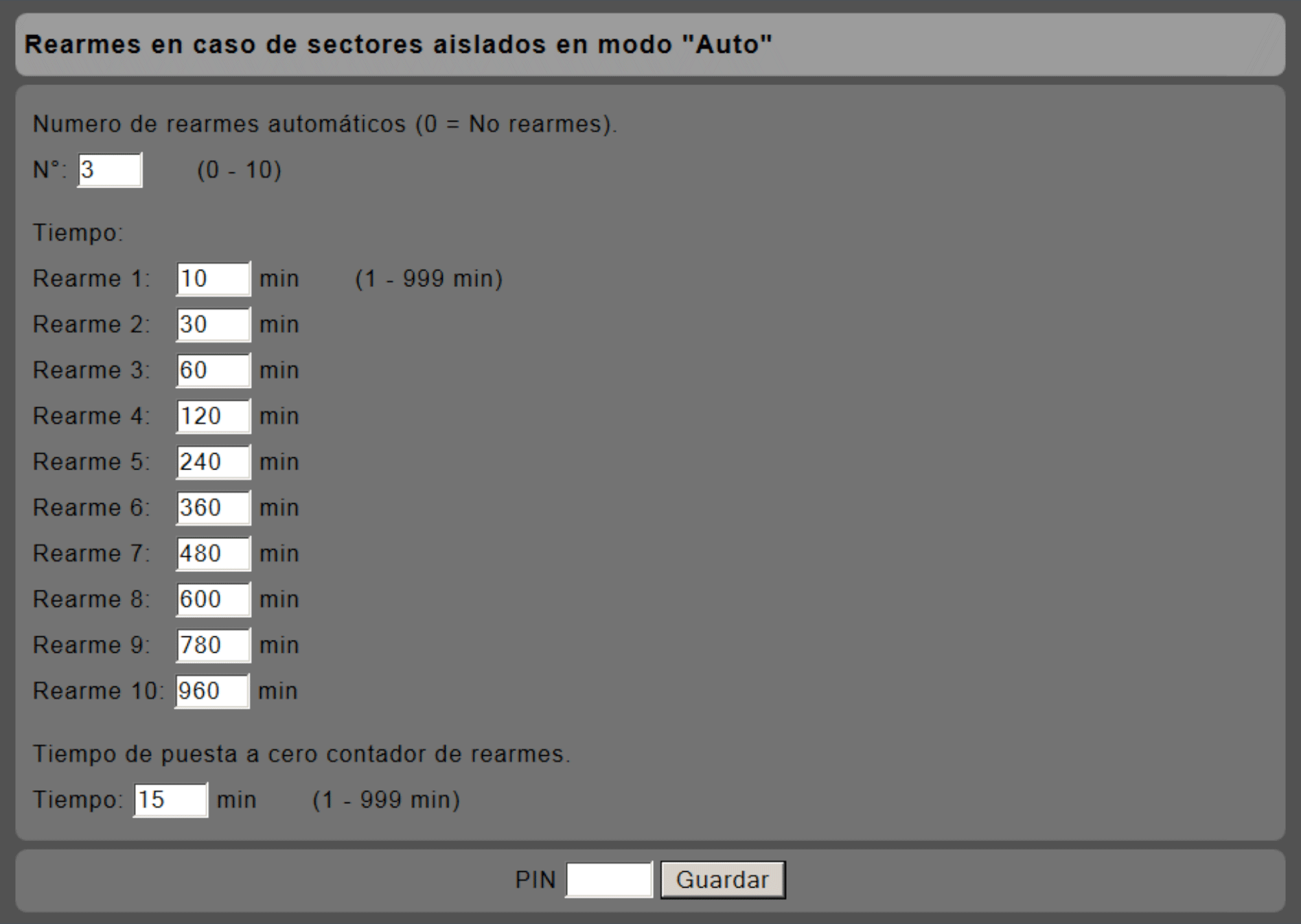

Alarms programmable in value and delay with automatic reclosure (intelligent and sequential).

Management, sizing and energy monitoring.

Maximum and minimum measurement logs and individual alarm counters.

WebServer: display with continuous refreshment, programming and remote control via the Internet.
Further information

Control for up to 10 output and 10 input relays (domotics).

DWP, professional desktop software for PC, with database, graphical data analysis, oscilloscope event-logger in waveform with pre-trigger and autoscale, 7-channel oscilloscope, 63-harmonics spectrum, programmable control of relays with alarms, automatic alerts via e-mail.
Further information

Historical, chronological log of alarms and conditions.

HTTP TCP / IP communication protocol for user application (customised software).



28 simultaneous protections with high-speed cut-off (5ms).

Mains quality analysis.

Alarms programmable in value and delay with automatic reclosure (intelligent and sequential).

Management, sizing and energy monitoring.

Maximum and minimum measurement logs and individual alarm counters.

WebServer: display with continuous refreshment, programming and remote control via the Internet.
Further information

Control for up to 10 output and 10 input relays (domotics).

DWP, professional desktop software for PC, with database, graphical data analysis, oscilloscope event-logger in waveform with pre-trigger and autoscale, 7-channel oscilloscope, 63-harmonics spectrum, programmable control of relays with alarms, automatic alerts via e-mail.
Further information

Historical, chronological log of alarms and conditions.

HTTP TCP / IP communication protocol for user application (customised software).



28 simultaneous protections with medium-speed cut-off (10ms).

Mains quality analysis.

Alarms programmable in value and delay with automatic reclosure (intelligent and sequential).

Management, sizing and energy monitoring.

Maximum and minimum measurement logs and individual alarm counters.

WebServer: display with continuous refreshment, programming and remote control via the Internet.
Further information

Control for up to 10 output and 10 input relays (domotics).

DWP, professional desktop software for PC, with database, graphical data analysis, oscilloscope event-logger in waveform with pre-trigger and autoscale, 7-channel oscilloscope, 63-harmonics spectrum, programmable control of relays with alarms, automatic alerts via e-mail.
Further information

Historical, chronological log of alarms and conditions.

HTTP TCP / IP communication protocol for user application (customised software).



Mains quality analysis.

Management, sizing and energy monitoring.

Maximum and minimum measurement logs.

WebServer: display with continuous refreshment, programming and remote control via the Internet.
Further information

Control for up to 10 output and 10 input relays (domotics).

DWP, professional desktop software for PC, with database, graphical data analysis, oscilloscope event-logger in waveform with pre-trigger and autoscale, 7-channel oscilloscope, 63-harmonics spectrum, programmable control of relays with alarms, automatic alerts via e-mail.
Further information

Historical, chronological log of conditions.

HTTP TCP / IP communication protocol for user application (customised software).



Mains quality analysis.

Management, sizing and energy monitoring.

Maximum and minimum measurement logs.

WebServer: display with continuous refreshment, programming and remote control via the Internet.
Further information

Control for up to 10 output and 10 input relays (domotics).

DWP, professional desktop software for PC, with database, graphical data analysis, oscilloscope event-logger in waveform with pre-trigger and autoscale, 7-channel oscilloscope, 63-harmonics spectrum, programmable control of relays with alarms, automatic alerts via e-mail.
Further information

Historical, chronological log of conditions.

HTTP TCP / IP communication protocol for user application (customised software).



Mains quality analysis.

Management, sizing and energy monitoring.

Maximum and minimum measurement logs.

WebServer: display with continuous refreshment, programming and remote control via the Internet.
Further information

Control for up to 10 output and 10 input relays (domotics).

DWP, professional desktop software for PC, with database, graphical data analysis, oscilloscope event-logger in waveform with pre-trigger and autoscale, 7-channel oscilloscope, 63-harmonics spectrum, programmable control of relays with alarms, automatic alerts via e-mail.
Further information

Historical, chronological log of conditions.

HTTP TCP / IP communication protocol for user application (customised software).

Specifications

LED indicators.

Integrated General Electric MCB from 6 to 63A, 2 and 4-pole.

Microchip micro-computer. Highly stable unit due to built-in double watchdog.

Integrated reclosure motor-drive (100,000 operations).

Dimensions 2-pole:
128mm (7 modules) x 81mm, 35mm DIN rail.

Dimensions 4-pole:
163 mm (9 modules) x 81 mm, 35mm DIN rail



Alphanumerical display.

Integrated General Electric MCB from 6 to 63A, 2 and 4-pole.

Texas Instruments micro-computer. Highly stable unit due to built-in double watchdog.

Integrated reclosure motor-drive (100,000 operations).

Dimensions 2-pole::
128mm (7 modules) x 81mm, 35mm DIN rail.

Dimensions 4-pole:
163 mm (9 modules) x 81 mm, 35mm DIN rail



LED indicators.

Integrated General Electric differential.

Microchip micro-computer. Highly stable unit due to built-in double watchdog.

Integrated reclosure motor-drive (100,000 operations).

Dimensions 2-pole:
107mm (6 modules) x 81 mm, 35mm DIN rail.

Features

Differential, overvoltage, low voltage and magnetothermic protection. Very high-speed cut-off (2ms).

Automatic reclosures (intelligent and sequential).



Differential, overvoltage, low voltage and magnetothermic protection. Very high-speed cut-off (2ms).

Alarms programmable in value and delay with automatic reclosures (intelligent and sequential).

Maximum and minimum measurement logs and individual alarm counters.



Automatic differential reclosure device.

Automatic reclosures

Consult manual. 3-year guarantee.
For other configurations, please consult the manufacturer Safeline, S.L.


UNIVERSAL+ 7WR 4ASR

Auto-aislador de sectores rearmable
Control de 4 sectores (4 relés de salida)
Modo automático o manual-OFF de sectores
Secuencia de activación con retardo de validación por cada sector
Diez rearmes automáticos con tiempo de puesta a cero
Desbloqueo y reset manual
Retardo general por corte de red

Programación, control y supervisión total en tiempo real a través de Internet / Intranet

Conéctate vía Internet desde el navegador Web de cualquier dispositivo

Google Chrome
Mozilla Firefox
Internet Explorer / Edge
Safari
Opera

UNIVERSAL+ 7WR 4ASR

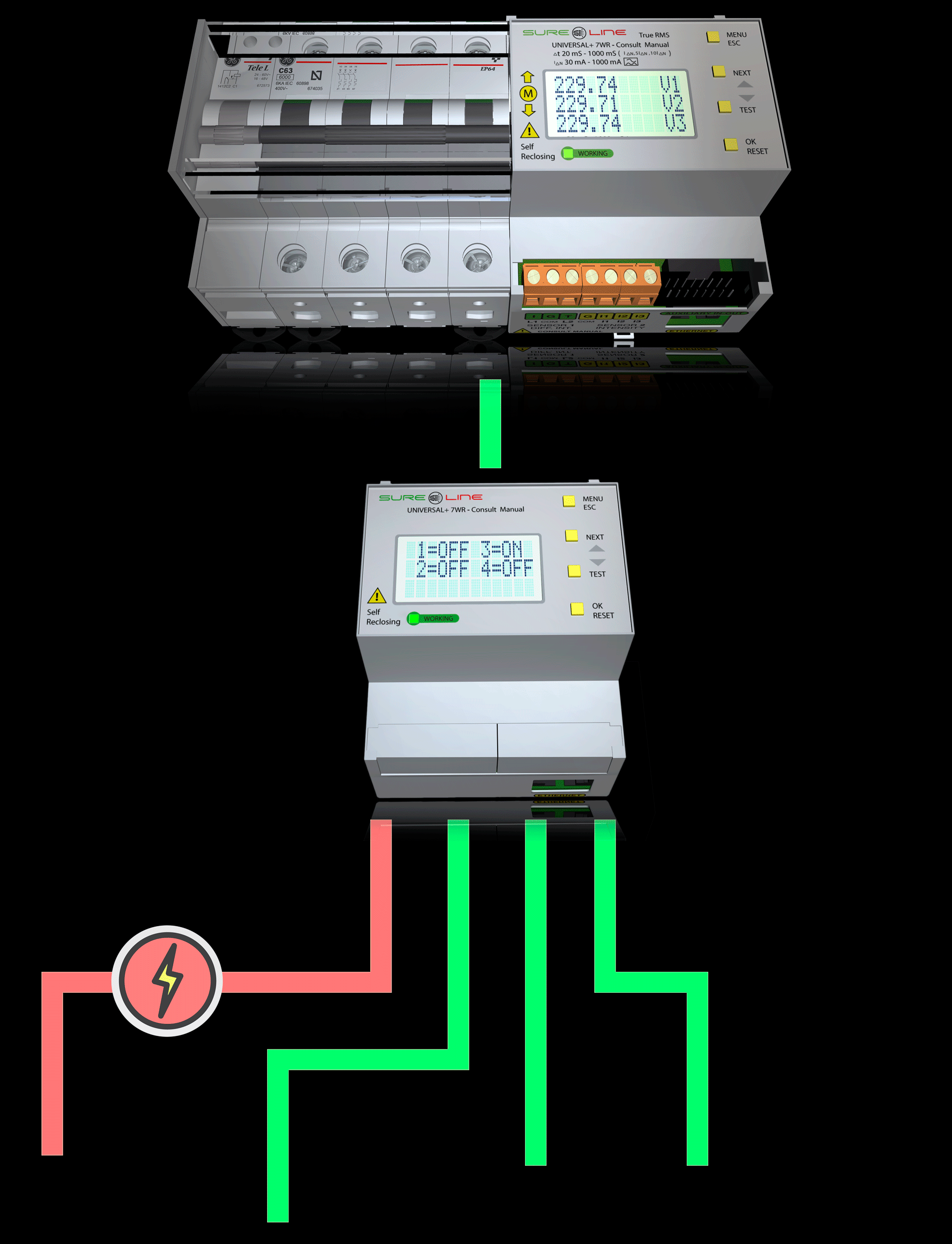

La principal función del equipo Universal+ 7WR ASR es aislar los sectores eléctricos que presenten problemas de fugas a tierra o sobrecargas, permitiendo que el resto de los sectores continúen funcionando con normalidad. Para su correcto funcionamiento debe instalarse aguas abajo de un equipo protector de fugas a tierra y sobrecargas con rearme automático.

Cuando el equipo protector rearme, el Universal+ 7WR ASR detectará la presencia de tensión 230V AC y seguidamente iniciará de forma automática la secuencia de activación de los sectores (relés). Estos sectores se irán activando de forma secuencial lo que permitirá minimizar la sobreintensidad de puesta en marcha en el equipo protector aguas arriba.

Configuración de sectores y estado actual

Configuración Auto-aislador

Más información sobre su funcionamiento

¿Cómo funciona?

Secuencia de activación: Este proceso secuencial de activación memoriza cada paso dado, de tal forma que si, después de activar un sector, no se cumple un retardo de validación (por falta de presencia de tensión 230V AC debido a una desconexión general por parte del equipo protector con rearme automático instalado aguas arriba), la próxima vez que se inicie la secuencia de activación, el equipo omitirá la activación del sector defectuoso, se memorizará y este sector quedará aislado. Una vez terminada la secuencia de activación, si existen sectores aislados, el equipo realizará un ciclo de rearme temporizado (si está programado) para intentar activar dichos sectores de nuevo.
Modo automático / Manual-OFF: La secuencia de activación sólo tendrá en cuenta los sectores configurados como “Auto”. Los sectores en modo “Manual-OFF” permanecerán indefinidamente desactivados (OFF).

¿Cómo funciona?

Retardo general por corte de red: Al detectar presencia de tensión 230V AC, se retardará el inicio de la secuencia de activación. Esto es útil para la sincronización con más equipos Universal+ 7WR ASR instalados en la misma línea y para la ampliación de sectores en múltiplos de 4.
Secuencia de activación: Este proceso secuencial de activación memoriza cada paso dado, de tal forma que si, después de activar un sector, no se cumple un retardo de validación (por falta de presencia de tensión 230V AC debido a una desconexión general por parte del equipo protector con rearme automático instalado aguas arriba), la próxima vez que se inicie la secuencia de activación, el equipo omitirá la activación del sector defectuoso, se memorizará y este sector quedará aislado. Una vez terminada la secuencia de activación, si existen sectores aislados, el equipo realizará un ciclo de rearme temporizado (si está programado) para intentar activar dichos sectores de nuevo.
Rearmes: De 0 a 10 rearmes automáticos para los sectores aislados (0 = no rearme). Si se hace uso de todos los rearmes sin éxito, los sectores aislados quedarán aislados indefinidamente.
Tiempo de puesta a cero del contador de rearmes: Si, después de un ciclo de rearme, se ha conseguido rearmar el sector / sectores defectuosos, empieza el ciclo de tiempo de puesta a cero del contador de rearmes. Una vez finalizado, el contador de rearmes es puesto a 0.

Características

Control de 4 sectores. (4 salidas de relés)

Modo automático o manual-OFF

Secuencia de activación con retardo de validación por cada sector

Diez rearmes automáticos con tiempo de puesta a cero

Desbloqueo y reset manual

Retardo general por corte de red

Ampliable a más sectores con la función “Retardo general por corte de red”
