Some reasons for choosing Sureline products

Sureline protects and withstands overvoltages

In order to protect correctly, the protection device must withstand overvoltages,
the Sureline units (230V) withstand overvoltages of 450V permanent and 1000V Pk.

Maximum precision (V, I) ± 0.1%, 0.2% and 0.5%

Thanks to its own technology and to its use of top quality calibrators, the Sureline units guarantee precisions of up to 5 decimal places.

Very high-speed cut-off (2ms)

In order guarantee maximum protection and an extremely high level of safety, the cut-off time is very much reduced.
For added safety, the Sureline units incorporate a double cut-off device.

Sureline measures and protects ALL

Safeline does not confine itself to offering conventional metering and protections.
It offers hundreds of measurement parameters and 30 simultaneous protections.

At the forefront in performance

In order to take full advantage of the Sureline units, these can be connected to the Internet. To this end,
the user has at his disposal DWP (professional software for PC, Modbus TCP / IP communications and the WebServer.

Analysing consumption

Domotics

Alerts via e-mail

MODBUS platform

Thanks to the open MODBUS platform integrated in all the UNIVERSAL+ units, the user can develop his own customised application.

Design, quality, miniaturisation and finishing

Only Safeline incorporates its own exceptional 100,000-operation motor-drive in a unit of only 4 modules.
It uses high-quality components and gold-plated connectors to ensure maximum service life and high reliability.
Minimal energy consumption (1 - 1,5W) and low working temperature.

Support for PoE (Power over Ethernet)

The units of the UNIVERSAL+ range can be powered by an Ethernet cable with no need whatsoever for mains supply.

3-year guarantee

Apart from the 3-year full warranty. Safeline provides a rapid, economical and efficient technical service.

Comparative study

Select a family and compare the different models.

Specifications

LED-backlit display.

Integrated General Electric MCB from 6 to 63A, 2 and 4-pole.

Texas Instruments micro-computer. Highly stable unit due to built-in triple watchdog.

Built-in motor-drive (100,000 operations).

Dimensions 2-pole:
128 mm (7 modules) x 81 mm, 35mm DIN rail.m.

Dimensions 4-pole:
163 mm (9 modules) x 81 mm, 35mm DIN rail.

RJ-45 Ethernet connector.



LED-backlit display.

External ABB / GE MCB solenoid from 80 to 250A, 4-pole.

Texas Instruments micro-computer. Highly stable unit due to built-in triple watchdog.

External reclosure motor-drive.

Dimensions 4-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

RJ-45 Ethernet connector.



LED-backlit display.

External relay / reclosure contactor from 25 to 1250A, 2 and 4-pole.

Texas Instruments micro-computer. Highly stable unit due to built-in triple watchdog.

External relay / reclosure contactor.

Dimensions 2-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

Dimensions 4-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

RJ-45 Ethernet connector.



LED-backlit display.

Texas Instruments micro-computer. Highly stable unit due to built-in triple watchdog.

Dimensions 2-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

Dimensions 4-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

RJ-45 Ethernet connector



Working LED with reset button.

Texas Instruments micro-computer. Highly stable unit due to built-in double watchdog.

Dimensions 2-pole:
18 mm (1 module) x 67 mm, 35mm DIN rail.

Dimensions 4-pole:
36 mm (2 modules) x 67 mm, 35mm DIN rail.

RJ-45 Ethernet connector.



Working LED with reset button.

Texas Instruments micro-computer. Highly stable unit due to built-in double watchdog.

Dimensions 2-pole:
18 mm (1 module) x 67 mm, 35mm DIN rail.

Dimensions 4-pole:
36 mm (2 modules) x 67 mm, 35mm DIN rail.

RJ-45 Ethernet connector.

Features

30 simultaneous protections with very high-speed cut-off (2ms).

Mains quality analysis.

Alarms programmable in value and delay (intelligent and sequential).

Management, sizing and energy monitoring.

Maximum and minimum measurement logs and individual alarm counters.

WebServer: display with continuous refreshment, programming and remote control via the Internet.
Further information

Control for up to 10 output and 10 input relays (domotics) plus 2 remote relays via TCP / IP (multi-interaction).

DWP, professional desktop software for PC, with database, graphical data analysis, oscilloscope event-logger in waveform with pre-trigger and autoscale, 7-channel oscilloscope, 63-harmonics spectrum, programmable control of relays with alarms, automatic alerts via e-mail.
Further information

Historical, chronological log of alarms and conditions.

Modbus and HTTP TCP / IP communication protocols for user application (customised software).



30 simultaneous protections with high-speed cut-off (5ms).

Mains quality analysis.

Alarms programmable in value and delay (intelligent and sequential).

Management, sizing and energy monitoring.

Maximum and minimum measurement logs and individual alarm counters.

WebServer: display with continuous refreshment, programming and remote control via the Internet.
Further information

Control for up to 10 output and 10 input relays (domotics) plus 2 remote relays via TCP / IP (multi-interaction).

DWP, professional desktop software for PC, with database, graphical data analysis, oscilloscope event-logger in waveform with pre-trigger and autoscale, 7-channel oscilloscope, 63-harmonics spectrum, programmable control of relays with alarms, automatic alerts via e-mail.
Further information

Historical, chronological log of alarms and conditions.

Modbus and HTTP TCP / IP communication protocols for user application (customised software).



30 simultaneous protections with medium-speed cut-off (10ms)

Mains quality analysis.

Alarms programmable in value and delay (intelligent and sequential).

Management, sizing and energy monitoring.

Maximum and minimum measurement logs and individual alarm counters.

WebServer: display with continuous refreshment, programming and remote control via the Internet.
Further information

Control for up to 10 output and 10 input relays (domotics) plus 2 remote relays via TCP / IP (multi-interaction).

DWP, professional desktop software for PC, with database, graphical data analysis, oscilloscope event-logger in waveform with pre-trigger and autoscale, 7-channel oscilloscope, 63-harmonics spectrum, programmable control of relays with alarms, automatic alerts via e-mail.
Further information

Historical, chronological log of alarms and conditions.

Modbus and HTTP TCP / IP communication protocols for user application (customised software).



Mains quality analysis.

Alarms programmable in value and delay.

Management, sizing and energy monitoring.

Maximum and minimum measurement logs and individual alarm counters.

WebServer: display with continuous refreshment, programming and remote control via the Internet.
Further information

Control for up to 10 output and 10 input relays (domotics) plus 2 remote relays via TCP / IP (multi-interaction).

DWP, professional desktop software for PC, with database, graphical data analysis, oscilloscope event-logger in waveform with pre-trigger and autoscale, 7-channel oscilloscope, 63-harmonics spectrum, programmable control of relays with alarms, automatic alerts via e-mail.
Further information

Historical, chronological log of alarms and conditions.

Modbus and HTTP TCP / IP communication protocols for user application (customised software).



Mains quality analysis.

Alarms programmable in value and delay.

Management, sizing and energy monitoring.

Maximum and minimum measurement logs and individual alarm counters.

WebServer: display with continuous refreshment, programming and remote control via the Internet.
Further information

Control for up to 10 output and 10 input relays (domotics) plus 2 remote relays via TCP / IP (multi-interaction).

DWP, professional desktop software for PC, with database, graphical data analysis, oscilloscope event-logger in waveform with pre-trigger and autoscale, 7-channel oscilloscope, 63-harmonics spectrum, programmable control of relays with alarms, automatic alerts via e-mail.
Further information

Historical, chronological log of alarms and conditions.

Modbus and HTTP TCP / IP communication protocols for user application (customised software).



Management, sizing and energy monitoring.

Maximum and minimum measurement logs

WebServer: display with continuous refreshment, programming and remote control via the Internet.
Further information

DWP, professional desktop software for PC, with database, graphical data analysis and automatic alerts via e-mail.
Further information

Modbus and HTTP TCP / IP communication protocols for user application (customised software).

UNIVERSAL 5PX

Discontinued product

UNIVERSAL 5PR

Discontinued product

UNIVERSAL 5PC

Discontinued product

UNIVERSAL 5MX

Discontinued product

UNIVERSAL 5ME

Discontinued product

Specifications

LED-backlit display.

Integrated General Electric MCB from 6 to 63A, 2 and 4-pole.

Texas Instruments micro-computer. Highly stable unit due to built-in triple watchdog.

Built-in motor-drive (100,000 operations)

Dimensions 2-pole:
128 mm (7 modules) x 81 mm, 35mm DIN rail.

Dimensions 4-pole:
163 mm (9 modules) x 81 mm, 35mm DIN rail

RJ-45 Ethernet connector.



LED-backlit display.

External ABB / GE MCB solenoid from 80 to 250A, 4-pole.

Texas Instruments micro-computer. Highly stable unit due to built-in triple watchdog.

External reclosure motor-drive.

Dimensions 4-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

RJ-45 Ethernet connector.



LED-backlit display.

External relay / reclosure contactor from 25 to 1250A, 2 and 4-pole

Texas Instruments micro-computer. Highly stable unit due to built-in triple watchdog.

External relay / reclosure contactor.

Dimensions 2-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

Dimensions 4-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

RJ-45 Ethernet connector.



LED-backlit display.

Texas Instruments micro-computer. Highly stable unit due to built-in double watchdog.

Dimensions 2-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

Dimensions 4-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

RJ-45 Ethernet connector.



LED-backlit display.

Texas Instruments micro-computer. Highly stable unit due to built-in double watchdog.

Dimensions 2-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

Dimensions 4-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

RJ-45 Ethernet connector.



LED-backlit display.

Texas Instruments micro-computer. Highly stable unit due to built-in double watchdog.

Dimensions 2-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

Dimensions 4-pole:
72 mm (4 modules) x 81 mm, 35mm DIN rail.

RJ-45 Ethernet connector.

Features

28 simultaneous protections with very high-speed cut-off (2ms).

Mains quality analysis.

Alarms programmable in value and delay with automatic reclosure (intelligent and sequential).

Management, sizing and energy monitoring.

Maximum and minimum measurement logs and individual alarm counters.

WebServer: display with continuous refreshment, programming and remote control via the Internet.
Further information

Control for up to 10 output and 10 input relays (domotics).

DWP, professional desktop software for PC, with database, graphical data analysis, oscilloscope event-logger in waveform with pre-trigger and autoscale, 7-channel oscilloscope, 63-harmonics spectrum, programmable control of relays with alarms, automatic alerts via e-mail.
Further information

Historical, chronological log of alarms and conditions.

HTTP TCP / IP communication protocol for user application (customised software).



28 simultaneous protections with high-speed cut-off (5ms).

Mains quality analysis.

Alarms programmable in value and delay with automatic reclosure (intelligent and sequential).

Management, sizing and energy monitoring.

Maximum and minimum measurement logs and individual alarm counters.

WebServer: display with continuous refreshment, programming and remote control via the Internet.
Further information

Control for up to 10 output and 10 input relays (domotics).

DWP, professional desktop software for PC, with database, graphical data analysis, oscilloscope event-logger in waveform with pre-trigger and autoscale, 7-channel oscilloscope, 63-harmonics spectrum, programmable control of relays with alarms, automatic alerts via e-mail.
Further information

Historical, chronological log of alarms and conditions.

HTTP TCP / IP communication protocol for user application (customised software).



28 simultaneous protections with medium-speed cut-off (10ms).

Mains quality analysis.

Alarms programmable in value and delay with automatic reclosure (intelligent and sequential).

Management, sizing and energy monitoring.

Maximum and minimum measurement logs and individual alarm counters.

WebServer: display with continuous refreshment, programming and remote control via the Internet.
Further information

Control for up to 10 output and 10 input relays (domotics).

DWP, professional desktop software for PC, with database, graphical data analysis, oscilloscope event-logger in waveform with pre-trigger and autoscale, 7-channel oscilloscope, 63-harmonics spectrum, programmable control of relays with alarms, automatic alerts via e-mail.
Further information

Historical, chronological log of alarms and conditions.

HTTP TCP / IP communication protocol for user application (customised software).



Mains quality analysis.

Management, sizing and energy monitoring.

Maximum and minimum measurement logs.

WebServer: display with continuous refreshment, programming and remote control via the Internet.
Further information

Control for up to 10 output and 10 input relays (domotics).

DWP, professional desktop software for PC, with database, graphical data analysis, oscilloscope event-logger in waveform with pre-trigger and autoscale, 7-channel oscilloscope, 63-harmonics spectrum, programmable control of relays with alarms, automatic alerts via e-mail.
Further information

Historical, chronological log of conditions.

HTTP TCP / IP communication protocol for user application (customised software).



Mains quality analysis.

Management, sizing and energy monitoring.

Maximum and minimum measurement logs.

WebServer: display with continuous refreshment, programming and remote control via the Internet.
Further information

Control for up to 10 output and 10 input relays (domotics).

DWP, professional desktop software for PC, with database, graphical data analysis, oscilloscope event-logger in waveform with pre-trigger and autoscale, 7-channel oscilloscope, 63-harmonics spectrum, programmable control of relays with alarms, automatic alerts via e-mail.
Further information

Historical, chronological log of conditions.

HTTP TCP / IP communication protocol for user application (customised software).



Mains quality analysis.

Management, sizing and energy monitoring.

Maximum and minimum measurement logs.

WebServer: display with continuous refreshment, programming and remote control via the Internet.
Further information

Control for up to 10 output and 10 input relays (domotics).

DWP, professional desktop software for PC, with database, graphical data analysis, oscilloscope event-logger in waveform with pre-trigger and autoscale, 7-channel oscilloscope, 63-harmonics spectrum, programmable control of relays with alarms, automatic alerts via e-mail.
Further information

Historical, chronological log of conditions.

HTTP TCP / IP communication protocol for user application (customised software).

Specifications

LED indicators.

Integrated General Electric MCB from 6 to 63A, 2 and 4-pole.

Microchip micro-computer. Highly stable unit due to built-in double watchdog.

Integrated reclosure motor-drive (100,000 operations).

Dimensions 2-pole:
128mm (7 modules) x 81mm, 35mm DIN rail.

Dimensions 4-pole:
163 mm (9 modules) x 81 mm, 35mm DIN rail



Alphanumerical display.

Integrated General Electric MCB from 6 to 63A, 2 and 4-pole.

Texas Instruments micro-computer. Highly stable unit due to built-in double watchdog.

Integrated reclosure motor-drive (100,000 operations).

Dimensions 2-pole::
128mm (7 modules) x 81mm, 35mm DIN rail.

Dimensions 4-pole:
163 mm (9 modules) x 81 mm, 35mm DIN rail



LED indicators.

Integrated General Electric differential.

Microchip micro-computer. Highly stable unit due to built-in double watchdog.

Integrated reclosure motor-drive (100,000 operations).

Dimensions 2-pole:
107mm (6 modules) x 81 mm, 35mm DIN rail.

Features

Differential, overvoltage, low voltage and magnetothermic protection. Very high-speed cut-off (2ms).

Automatic reclosures (intelligent and sequential).



Differential, overvoltage, low voltage and magnetothermic protection. Very high-speed cut-off (2ms).

Alarms programmable in value and delay with automatic reclosures (intelligent and sequential).

Maximum and minimum measurement logs and individual alarm counters.



Automatic differential reclosure device.

Automatic reclosures

Composition / Schemes

Line intensity transformer. Transformers: TRIT7, TRIT14, TRIT18 and TRIT26
Individually calibrated to their unit for greater precision
TRIT7 (5A for standard transformer, from 50A / 5A up to 10,000A / 5A)
TRIT14, TRIT18 and TRIT26 (70A, 140A and 280A)

2-pole single-phase model, standard configuration:



UNIVERSAL+ 7WR MINI M4 M 500E E 50Hz 230V xxA see wiring diagram

Unit complete, just add ONE line intensity toroidal transformer (TRIT)



4-pole three-phase model, standard configuration:

UNIVERSAL+ 7WR MINI M4 T 500E E 50Hz 230V xxA see wiring diagram

Unit complete, just add THREE line intensity toroidal transformers (TRIT)



Transformers:

Line intensity toroidal transformer TRIT7 (7mm Ø). 5A. Dimensions: 23x25x11mm



Line intensity toroidal transformer TRIT14 (14mm Ø). 70A. Dimensions: 41x44x20mm



Line intensity toroidal transformer TRIT18 (18mm Ø). 140A. Dimensiones: 50x53x31mm



Line intensity toroidal transformer TRIT26 (26mm Ø). 280A. Dimensions: 70x76x31mm



Line intensity toroidal transformer xxxxA / 5A

Options:

Power over Ethernet



Version: energy log with 3-year built-in memory. Further information



Version: oscilloscope event-logger with pre-trigger (600-event built-in memory) Further information



Version: connection I / O external modules



Line intensity transformer. Standard transformer, from 50A / 5A up to 10,000A / 5A

4-pole three-phase model, standard configuration:



UNIVERSAL+ 7WR MINI M4 T 500E X 50Hz 230V see wiring diagram

Unit complete, just add THREE line intensity toroidal transformers xxxxA / 5A



Transformers:

Line intensity toroidal transformer xxxxA / 5A

Options:

Power over Ethernet



Version: energy log with 3-year built-in memory. Further information



Version: oscilloscope event-logger with pre-trigger (600-event built-in memory) Further information



Version: connection I / O external modules



Consult manual. 3-year guarantee.
For other configurations, please consult the manufacturer Safeline, S.L.

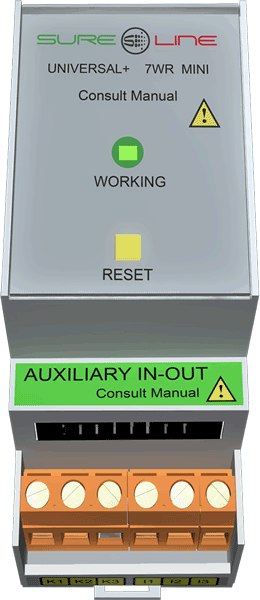

UNIVERSAL+ 7WR MINI M4

Universal tele-controllable mains analysis unit with WebServer and Modbus TCP / IP
Graphic and numerical display in real time. AC / DC and AC+DC measurements
Tele-management, sizing, surveillance, energy maintenance and I / O control
All in one and the same module

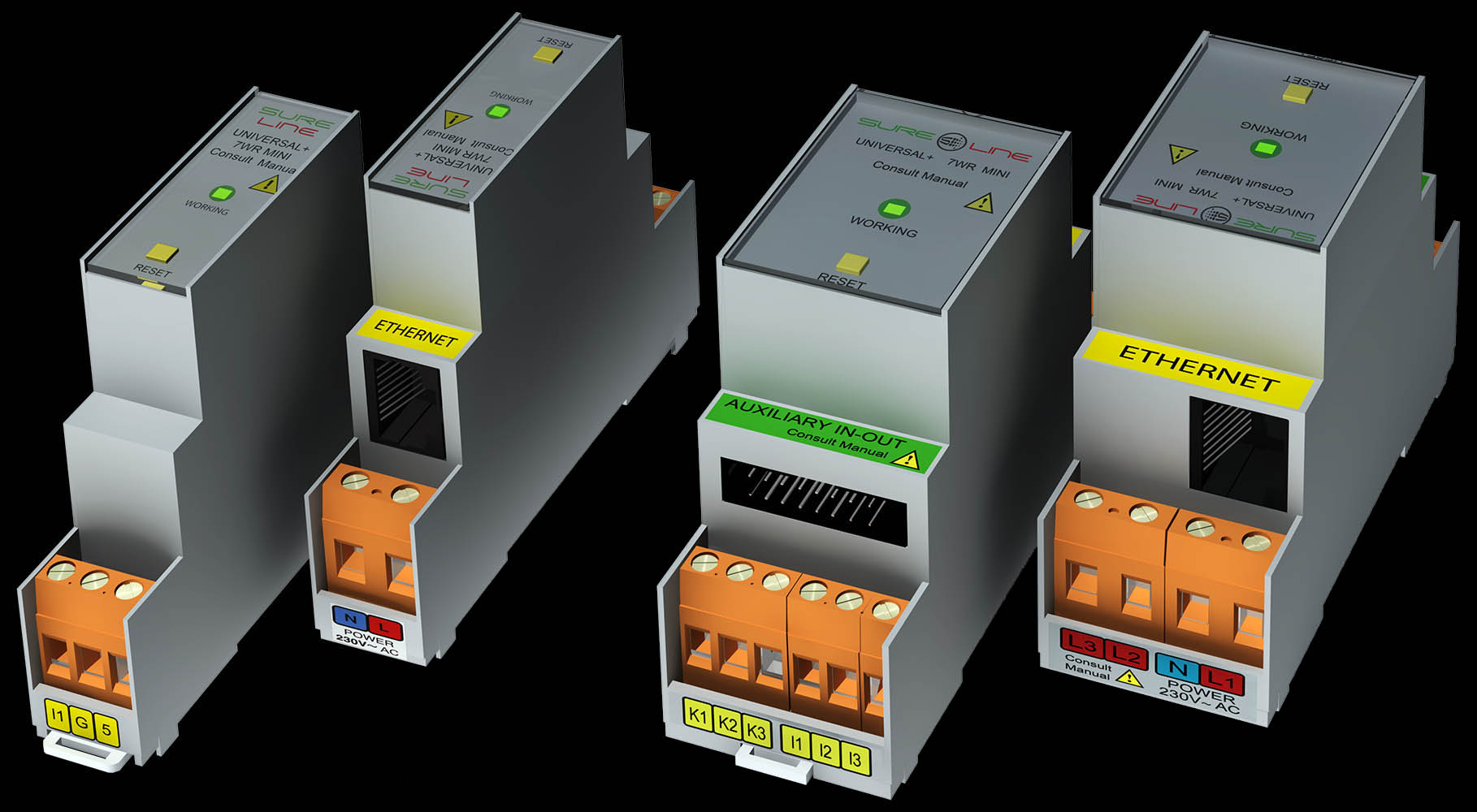

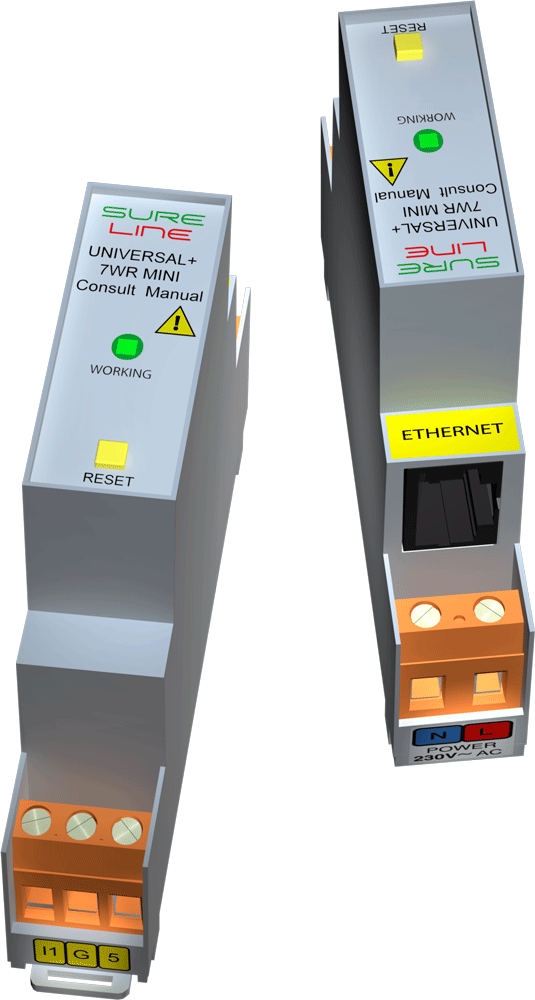

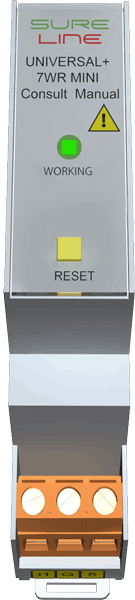

7WR MINI single-phase

Dimensions:

width: 18mm (1 module)
height: 67mm 35mm DIN rail

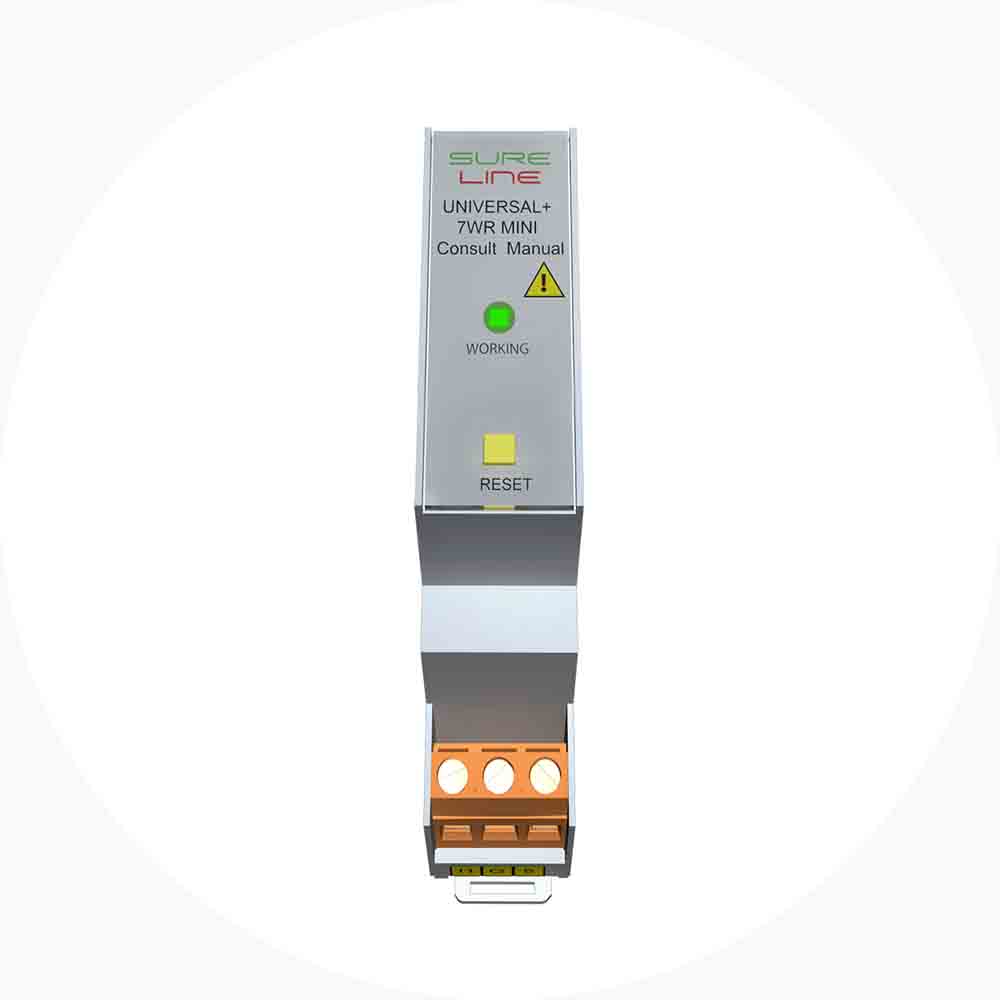

7WR MINI three-phase

Dimensions:

width: 36mm (2 modules)
height: 67mm 35mm DIN rail

Oscilloscope event-logger in waveform with pre-trigger (built-in 600-event memory)
64 harmonics with calculation of power, power factor, distortion range in % and value V – A, + THD
Proactive measurements of 1600 electrical parameters + temperature and humidity

Control, analysis, metering, protection, programming and logging via the Internet

Connect to Internet from any device’s browser or install DWP software for PC

Google Chrome
Mozilla Firefox
Internet Explorer / Edge
Safari
Opera

Responsible usage of energy

Thanks to the programmable control of up to 10 relays via Internet, it makes good use of energy
Safeline technology permits programming of switching on/off of electronic devices at set times
thus avoiding improper use (unnecessary lighting at certain times, excessive air-conditioning, etc)

The definitive website platform for management of UNIVERSAL 1 units

Safeline’s latest software development using cutting-edge technology is now available

All units can be managed simply and conveniently via the geographical location function from a map or its powerful dynamic filters

Safeline Web Service allows the user to store information sent by the Safeline units, analyse measurements and I/O status graphically via Gantt charts

The units’ relays can be controlled manually or automatically thanks to the multiple schedule-astronomical programmers assignable to tags (groups of units)

The user is kept updated 24/7 by e-mail notification of the status of all units by configured alarms

Maximum security of access to the platform

General overview (statistics and visualization of all the units)

Unit management with dynamic filters and customisable columns

Unit management via geographical location from map

Analysis of input / output status via Gantt chart

Graphical analysis of measurements

Alarm management for each unit with notifications via e-mail

Manual relay control and monitoring of relay status in tabular form

Monitoring of input / output status of all units in tabular form

Management of daily / weekly astronomical schedule programmer

Visualization of sunrise and sunset time of each unit in tabular form

Management of daily / weekly schedule programmers

Management of daily / weekly / yearly schedule programmers

Visualization in tabular form of daily / weekly / monthly / yearly (vacations and holidays) schedule programmers

Management of tags (groups of units)

Notifications centre

Adjustments

User’s profile




Further information regarding installation

Safeline Web Service installation procedure

In order to deploy the platform correctly, the system administrator must install the following open-code software distributions

  • MySQL 5.6

  • MongoDB Community Server 3.4

  • Oracle JDK 8

WARNING: Safeline does not guarantee the correct functioning of the software in any version previous or subsequent to the fore-mentioned.

Open the command interpreter and initialize the MySQL service.

> service mysql start

Create a database with collation “utf8_general_ci”, swsbd being the default name of the database in the project’s configuration file.

> CREATE DATABASE swsbd CHARACTER SET utf8 COLLATE utf8_general_ci

In this database, all the relational structure necessary to the Safeline Web Service software is maintained.

Subsequently, in a new instance of the command interpreter, initialize the MongoDb service.

> service mongod start

Hereafter, create a new database, mongosws being the default name.

> use mongosws

In the non-relational database are stored:

  • Measurements, input/output status and information/data from all units which they send to the server.

  • Logs generated by the system.

VERY IMPORTANT: the system administrator must be held accountable for backup copies and space available on the hard drive.

Upon download of the software packages pertaining to Safeline Web Service, the following directories are to be found:

  • Backend. Contains files necessary for deployment of Safeline Web Service’s main service and takes care of the following:

    • Create all relational database tables en MySQL 5.6

    • Register the user administrator by defect

    • Offer an authentication service

    • Present the user with the HTML5 templates

    • Alarm detection

    • Management of output relays via schedule programmers and manual control

    • Generation of notifications and dispatch of e-mails to the user

  • Rest. Contains the files for start-up of REST service. Takes care of following functionalities:

    • Initialization of non-relational database MongoDB 3.4

    • Deployment of an API REST service

    • Automatic registration of system units

    • Maintaining information, measurements and input/output status of Sureline 7WR units in the non-relational database

The Safeline Web Service software is made up of two Java application containers with a “.jar” extension, each of which has a secondary file for manual configuration with a “.yml” extension. It is of the utmost importance that, before installing and executing the “.jar” files, the “.yml” files are correctly configured. Refer to manual.

SAFELINE WEB SERVICE V1.1.0/
    ├── backend/
    │   ├── backend-0.0.1-SNAPSHOT.jar
    │   ├── backend-0.0.1-SNAPSHOT.jar.original
    │   ├── application.yml
    └── rest/
        ├── restservice-0.0.1-SNAPSHOT.jar
        ├── restservice-0.0.1-SNAPSHOT.original
        └── application.yml

Once the “.yml” files have been configured, open the command interpreter of the operating system and execute the Bacend service which is in the “backend-0.0.1-SNAPSHOT.jar” Java application container.

> java –jar backend-0.0.1-SNAPSHOT.jar

Wait until the software indicates “Started BackendApplication” in the register as this indicates that the service has initialized correctly.

Subsequently, open a new command interpreter and execute the rest service located in the Java application container “restservice-0.0.1-SNAPSHOT.jar”.

> java –jar restservice-0.0.1-SNAPSHOT.jar

Wait until the software indicates “Started RestserviceApplication” in the register as this indicates that the service has initialized correctly.

Enablement of data dispatch to the Safeline Web Service in the compatible Sureline Universal+ 7WR units 1

Access the unit and press “Access configuration”, go to “TCP/IP configuration (remote server)”, enter the server URL (public IP) where the Safeline Web Service is hosted and check “Enabled” box. Where the name is requested, it is recommended the number of the office/installation is noted. The user fields and password are not necessary with this software. Enter the user PIN and press “Save”.



Technologies

Java 8

HTML 5

MongoDB 3.4

MySQL 5.6



Outstanding characteristics

Storage of measurements and I/O status dispatched by the units

At 5-minute intervals, the units automatically dispatch measurements and I/O status to the Safeline Web Service server. The data remains recorded in the database for its analysis.

Auto-registration of units in the server

The Safeline Web Service auto-registers the units which send it information.

Geographical registration of units from map via Google

Geographical location. Latitude, longitude, time zone, address, town, province, community and country.

Astronomical weekly programmer for each geographical location (assignable to a group of units)

Astronomical daily / weekly: Management of output relays at sunrise and sunset according to time zone and geographical location of each unit. Permits programming daily switching on and off via a high-precision algorithm which calculates sunrise and sunset every day.

Thousands of independent schedule programmers (assignable to groups of units)

Daily / weekly: permits switching on and off to be programmed according to day/s of the week.

Daily / monthly / yearly: permits switching on and off to be programmed in a day / month / year.

Daily / monthly / yearly (vacations and holidays): permits switching on and off to be programmed in a day/month/year. Should it coincide on a specific day with any of the other programmers, this one takes priority and, therefore, will only execute the vacations and holidays programme.

Management of output relays

Via astronomical daily / weely programmer

Via multiple daily / weekly programmers

Via multiple daily / monthly / yearly programmers

Via multiple daily / monthly / yearly (vacations and holidays) programmers

Via direct manual control

Monitoring relay status of all the units in tabular form

Management of logic inputs

Monitoring input status of all the units in tabular form

Graphical analysis of measurements

The platform permits the measurements and I/O status of the units to be graphically analysed. The user can choose to view data in days, weeks or months. He can also choose to view in lines or bars. Can be zoomed in to the minimum scale (5 mins). Includes maximum, minimum and mean values.

Management of alarms for each unit with notifications via e-mail

The system permits the alarm enablement value of each measurement to be configured.

Assignation of alarms due to change in status at logic input

Notifications/e-mails sent via Internet/Intranet in the event of an alarm

Management of tags to assign to groups of units.

The tags have a colour and a name. By default, the platform creates tags based on ten colours in order to organise and cluster the units. The tags can also be customised by adding on, editing name and colour or eliminating them.

Management capacity: 16,000 Sureline units

Other functionalities

The platform is bilingual – English and Spanish

The design is adaptive to different screen resolutions and types, displaying the content in a specific form for each device.

The measurement graphs permit the user to select a template for a dark or light style.

Automatic tooltip: Moving the cursor over the table cells, an informative window pops up


1. Safeline Web Service is compatible with models UNIVERSAL+ 7WR M1, M2, M3, M4, M5, ROGOWSKI M4, XREM, TH, 7WR MINI M4 and MINI BASIC Software version V3.10 June 13 2018 or subsequent.

All brand names mentioned in the present document are merely for reference purposes and do not imply any relationship of Safeline with said companies.

Screen captures









Click to view in high resolution
