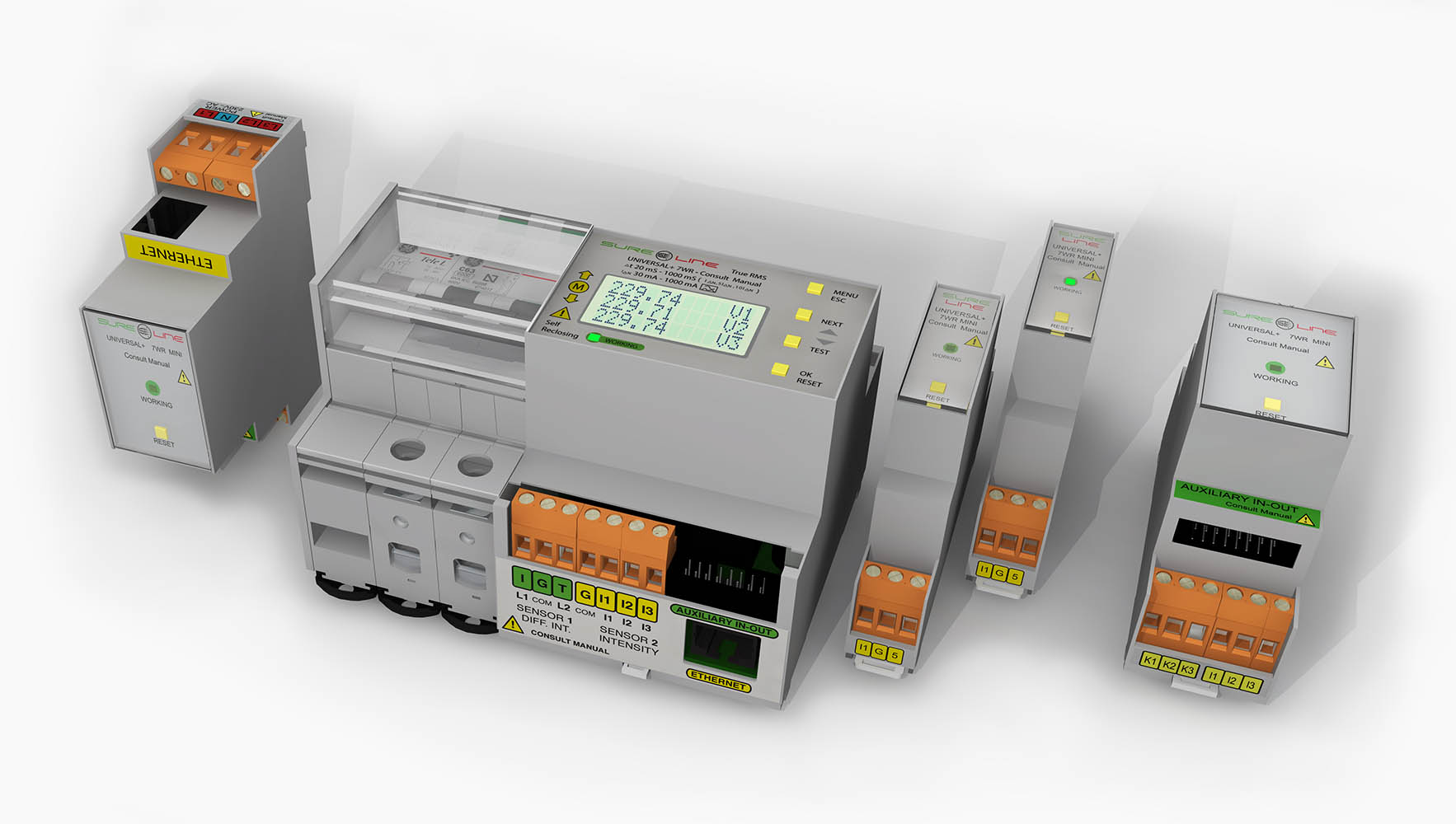

New UNIVERSAL+ 7WR family

Universal family for protection and mains analysis, tele-controllable with WebServer and Modbus TCP / IP
Automatic reclosures with built-in motor-drive. Graphical viewing in real time. AC/DC and AC+DC measurements
Tele-management, dimensioning, monitoring, energy maintenance and I/O control.

Three-phase and monophase multi-protection devices with mains analysis



Our flagship, designed to protect with automatic reclosure, metering, analysis, logging and I/O control.



Same features as the M1 but having protection by reclosure motor-drive/solenoid up to 250A



Same features as the M1 but having protection by reclosure relay/contactor up to 1250A



Hereda las mismas prestaciones que su hermano M1, pero con protección mediante Disparo por BOBINA DE EMISIÓN para magnetotérmico externo.



Protector de intensidad diferencial multilínea 4 líneas o sectores con disparo por BOBINA DE EMISIÓN para magnetotérmico externo (Rearme Manual)



Protector de intensidad diferencial multilínea 4 líneas o sectores con reconexión automática

Three-phase and monophase mains analysers



Our quintessential mains analyser has the same analytical features as the M1 but without the automatic reclosure.



Precisely designed to include all the features of the M4 but in only 18mm



An entry product for a more basic analysis, ideal for analysing consumptions, costs and emissions.

Three-phase mains analysers with Rogowski coil probe



Safeline’s quintessential mains analyser, now with Rogowski probe, for a quick and simple installation.

Multi-line mains analysers, 6 lines or monophase sectors



Designed for analysis of multi-line networks, with 6 intensity lines.



Just as with the 6LIN, it is designed for analysis of multi-line networks, with 6 intensity lines. It has, moreover, 6 remote relays via Internet/Intranet.

Power supply quality analyser. Standard UNE-EN 61000-4-30



Designed to analyse the quality of the power supply in accordance with Standard UNE-EN 61000-4-30.

Universal logic relay 4LOG, tele-controllable with WebServer and Modbus TCP/IP



Designed for the automation of any electrical system with inputs/outputs using a set of integrated functions which are easy to program with no need for a code.

Schedule multi-programmer + astronomical



Aimed at a surprisingly simple programming + astronomical of 4 output relays. 3072 schedules available.



Only 36mm wide, it has all the features of the 4PHA with 2 output relays. 3072 schedules available.

Schedule multi-programmer



Has all the same features of the 4PHA but without the astronomical schedule programmer.



Has all the same features of the 2PHA but without the astronomical schedule programmer.

Module made up of 4-10 remote relays via Internet/Intranet.



Operates as a remote external relay module via its remote control over Internet/Intranet. Specifically designed to work with Safeline Web Service management software.

Reclosable sector auto-isolator



Designed to isolate electrical sectors posing problems of earth leakage or over-loading and permit the remaining sectors to continue functioning

Temperature and relative humidity sensor



Temperature and relative humidity sensor with Graphic log via Internet / Intranet. Specifically designed to work with Safeline Web Service management software.

Three-phase and monophase multi-protection devices with mains analysis

UNIVERSAL+ 7WR M1



UNIVERSAL+ 7WR M2



UNIVERSAL+ 7WR M3



UNIVERSAL+ 7WR M5



UNIVERSAL+ 7WR 4KDIF



UNIVERSAL+ 7WR 4PDIF



UNIVERSAL+ 7WR M4



UNI.+ 7WR MINI M4



UNI.+ 7WR MINI BASIC



UNI.+ 7WR ROGOWSKI M4



UNIVERSAL+ 7WR 6LIN



UNIVERSAL+ 7WR 6LIR



UNIVERSAL+ 7WR CE



UNIVERSAL+ 7WR 4LOG



UNIVERSAL+ 7WR 4PHA



UNIVERSAL+ 7WR 2PHA



UNIVERSAL+ 7WR 4PH



UNIVERSAL+ 7WR 2PH



UNIVERSAL+ 7WR 4ASR



UNIVERSAL+ 7WR TH



Our flagship, designed to protect with automatic reclosure, metering, analysis, logging and I/O control.

UNIVERSAL 5xx family

Universal family for protection, metering, analysis, recording and automation / telecontrol units
Programmable, self-reclosable and with WebServer

Three-phase and monophase multi-protection devices with mains analysis



Three-phase and monophase multi-protection devices with mains analysis

UNIVERSAL 5PM





Residual current, overvoltage, low voltage and MCB protection unit with automatic reclosure

Models DOV707H, OVD706H, RDI705H, OVD106:
With built-in reclosure motor-drive up to 63A 2P and 4P



Protection, metering, analysis and recording unit. Programmable, self-reclosable and with built-in reclosure motor-drive

Models DOVIP847(R), OVIP835(R), DOV841(R), OV830(R), RD827:
With built-in reclosure motor-drive up to 63A 2P and 4P



Automatic residual current reclosure device
Automatic MCB reclosure device

Model REDIF101:
With built-in reclosure motor-drive: single-phase up to 63A 2PP
